Perlite insulation board,perlite door core and Perlite pipe insulation making machine
- Perlite insulation board Machine Specifications:
| Main machine | 5600×2850×3250mm | Machine power | 24KW |
| Hydraulic pressure | 16Mpa | Steel frame size | 2025×750mm |
| Forming period | 12s | Weight | About 8500kg |
- Perlite insulation board Capacity reference:
| 600x400mm | 6pcs/mould | 1800pcs/hour | 14400pcs/day |
| 500x300mm | 8 pcs/mould | 2400 pcs/hour | 19200 pcs/day |

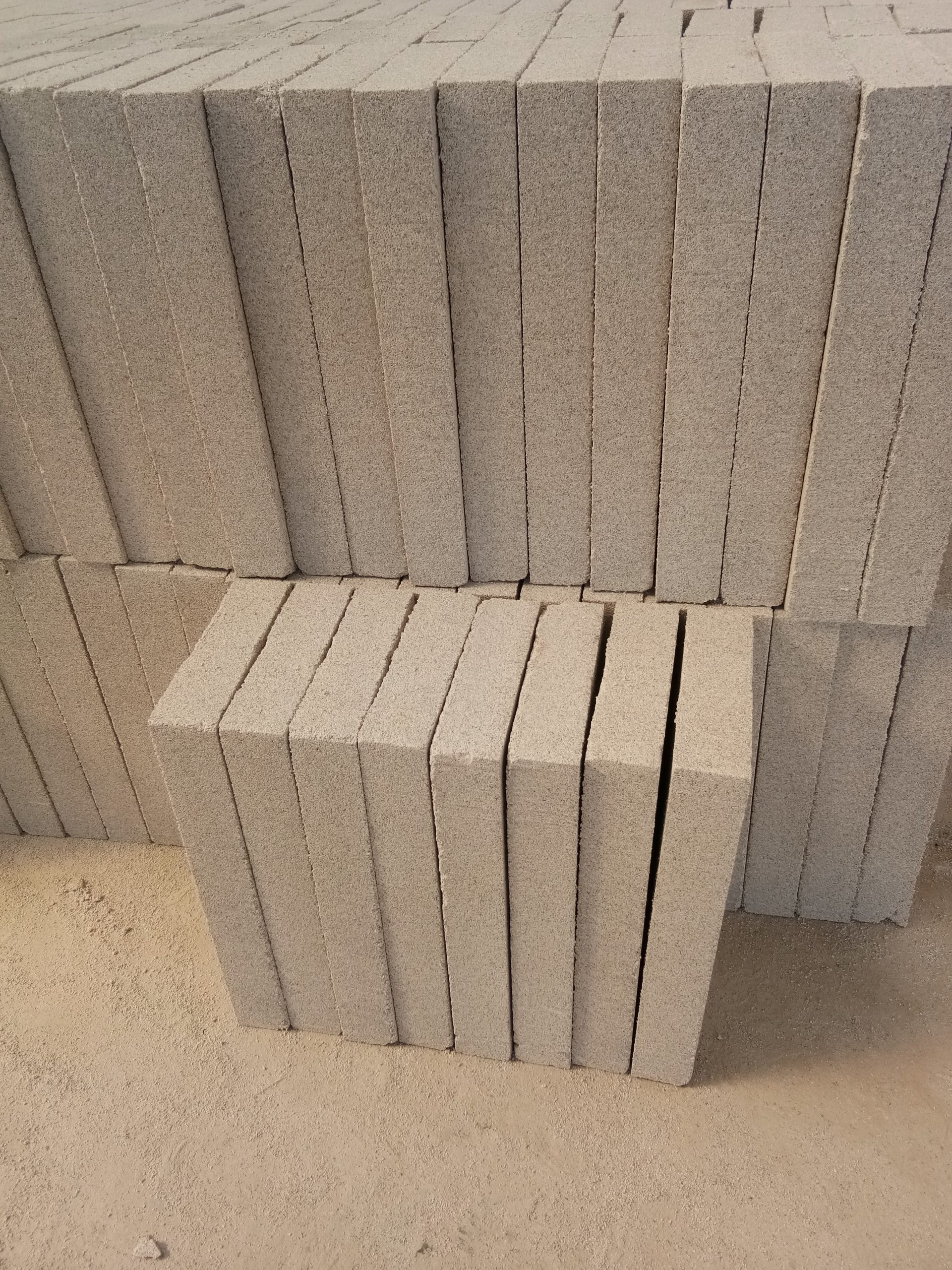

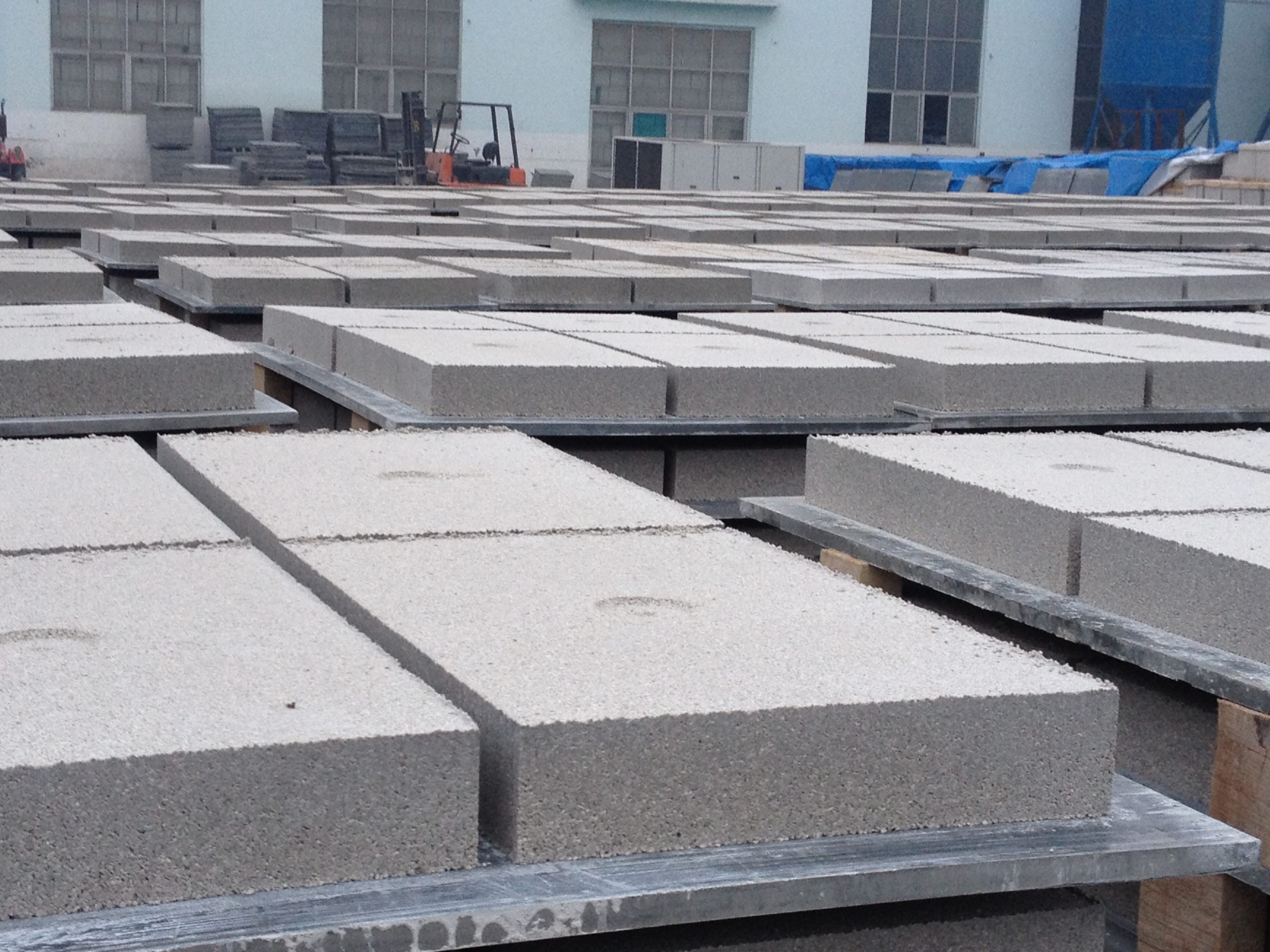

The panel sizes normally are 600x400mm, 500x300mm, thinckness：30～150mm.
The size also shall be customized according to clients actual requirements.
- Perlite insulation board making machine features:
- Fireproof Grade A.
- melting point above 2000℃。
- Thermal insulation.
- Sound insulation
- High strength,low bulik density,not easy to deformation and breakage.
- Good construction performance.
- perlite door core Capacity reference:
| door core size | piece/mould | piece/hour | piece/day |
| 2000x600mm | 1piece | 300pieces | 2400pieces |
The door core sizes normally 2000x600mm, thinckness：30～150mm.
The size also shall be customized according to clients actual requirements.
Our Perlite insulation board machine also could produce Perlite pipe insulation ,The size also shall be customized according to clients actual requirements.
