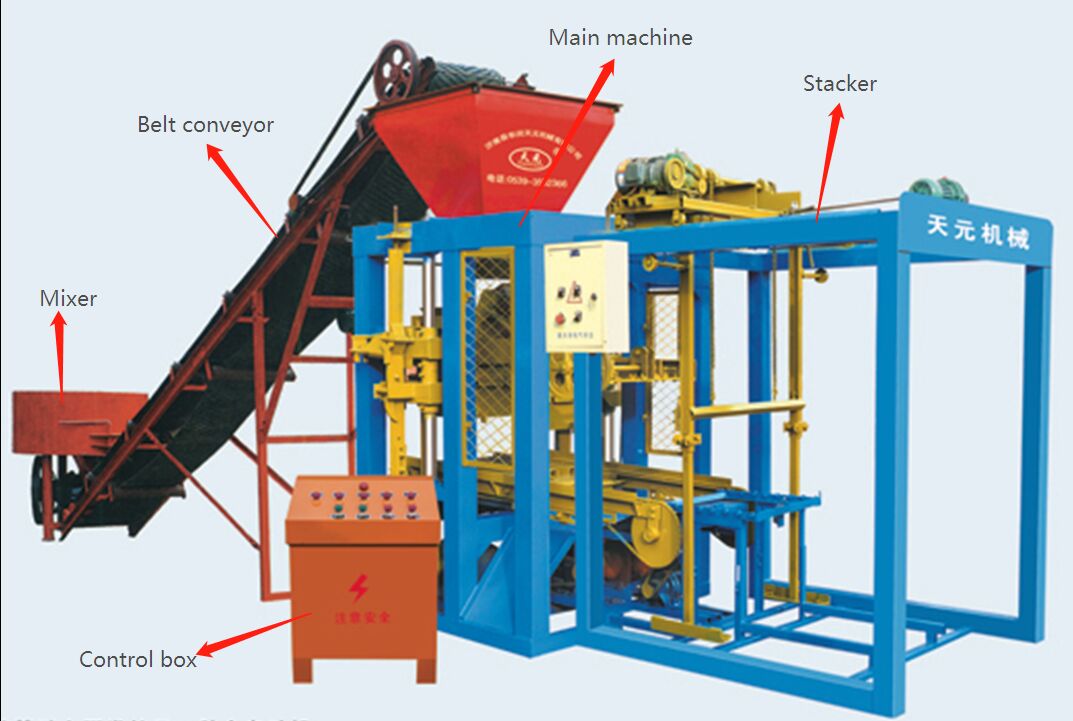

Mechanical block machine QTJ4-24

• Mechanical block machine Model QTJ4-24

• 1.Mechanical block machine QTJ4-24 Feathures:

1. sem-automatic. Very easy operation.
2. Low investment,excellent performance.
3. Multi-function, change different moulds for different sized hollow blocks, solid bricks,pavers,interlocking blocks, etc.
4. No need installation, all ready before loading from factory.

• 2.Mechanical block machine specifications:

Dimension(L*W*H)	2060×1700×2560mm	Vibration force	40KN
Pressure	5Mpa	Weight	About 2.5T
Moulding period	26S	Vibration Frequency	Max.4200r/m
Power	13.2KW	Pallet size(mm)	850×450

• Mechanical block machine products Sample

• Mechanical block machine QTJ4-24 Capacity reference:

Size(LxWxH)	Pcs/Mould	Pcs/hour	Pcs/ 8 Hr
400X200X200 Hollow block	4	480	3840
400X150X200 hollow block	5	600	4800
400X100X200 hollow block	7	840	6720
240X115X52 solid brick	18	2160	17280
